Description

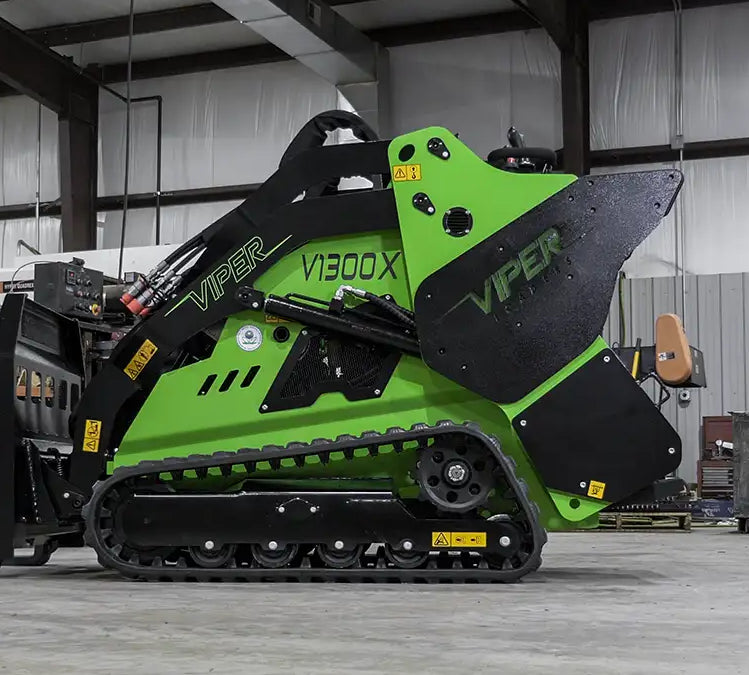

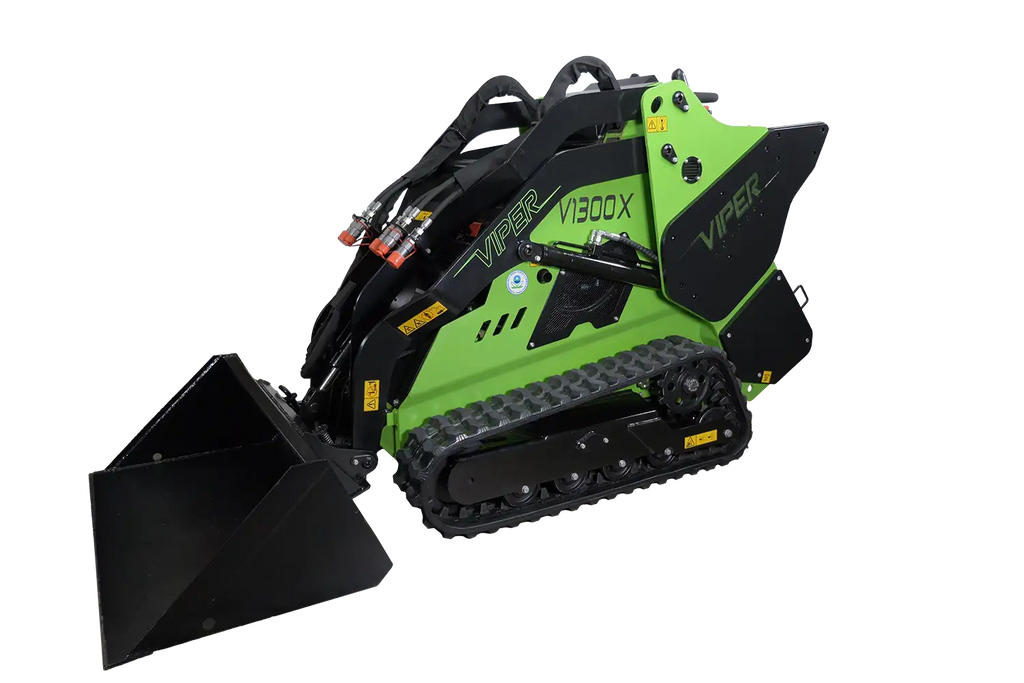

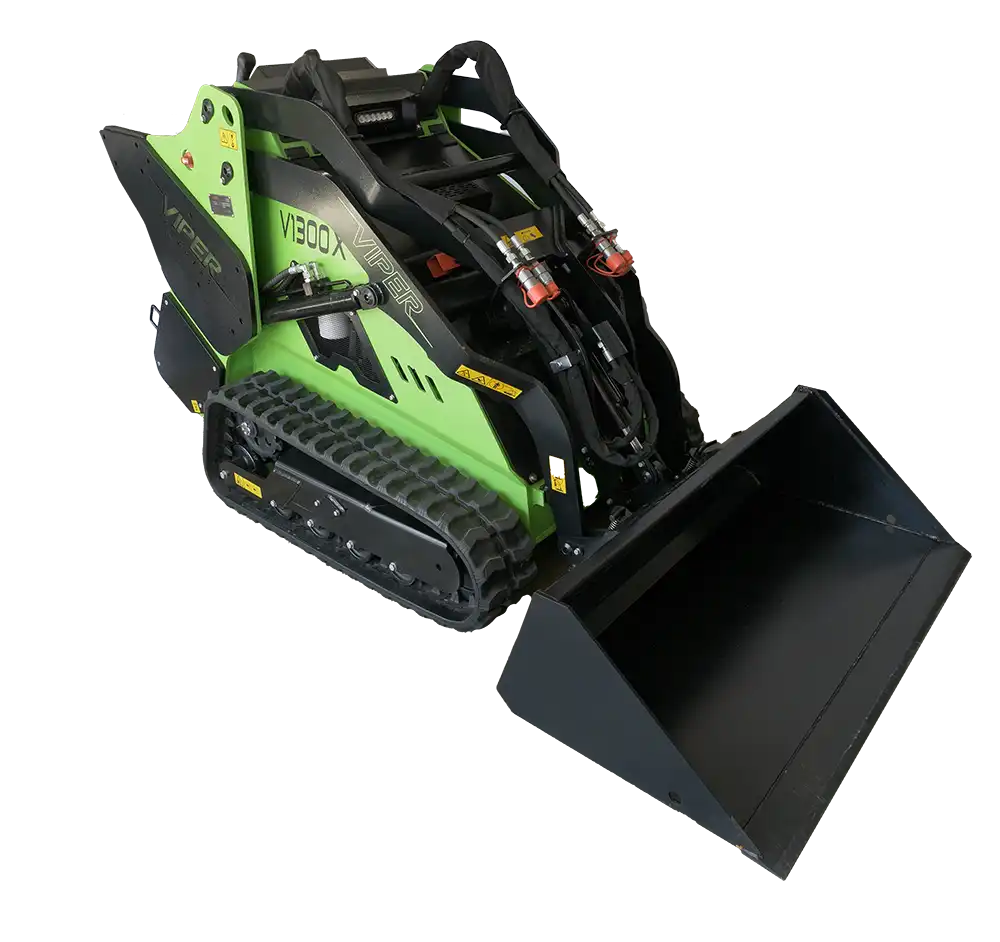

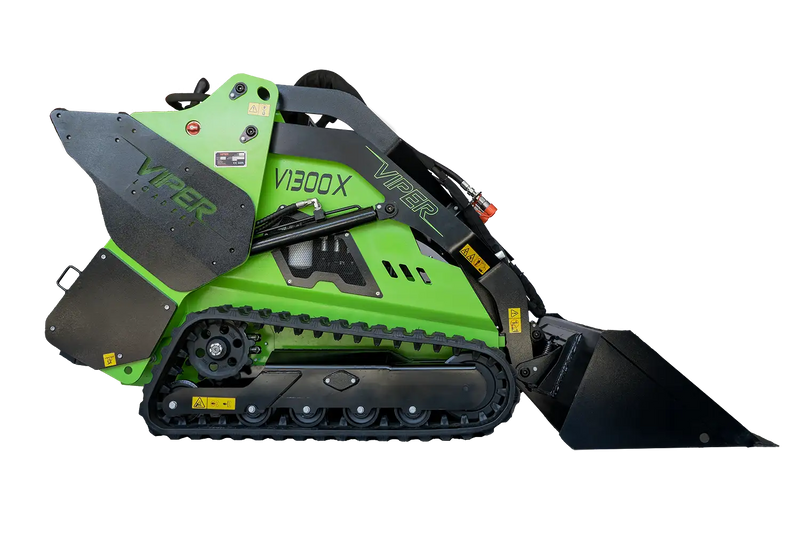

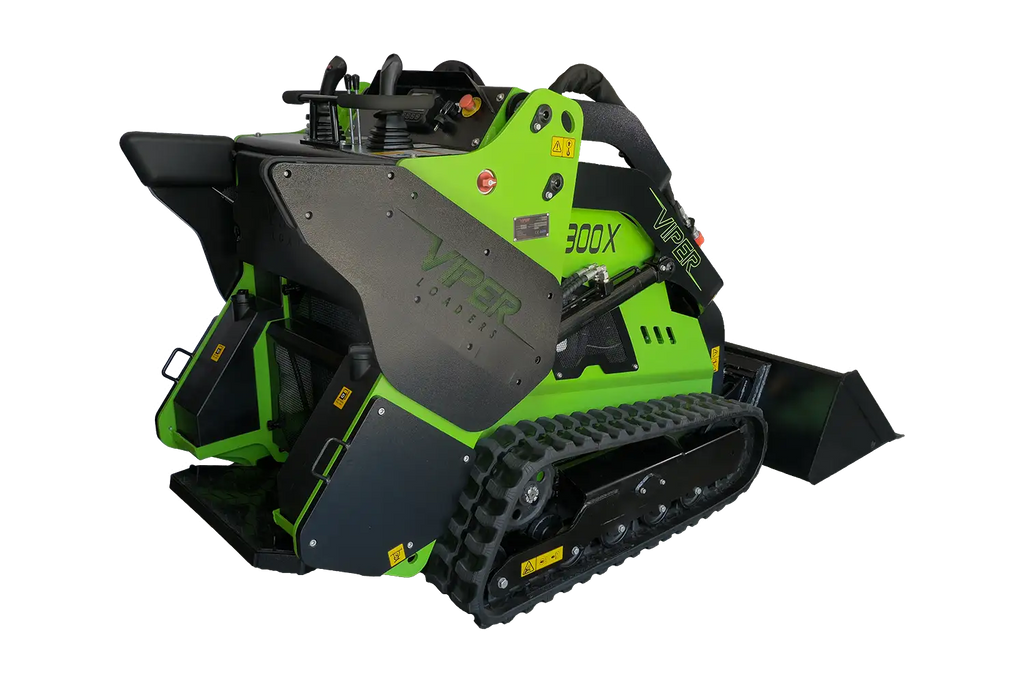

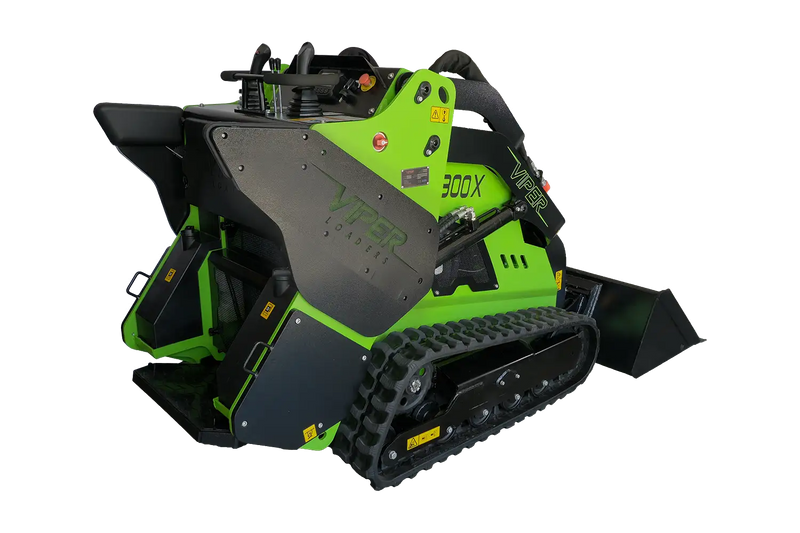

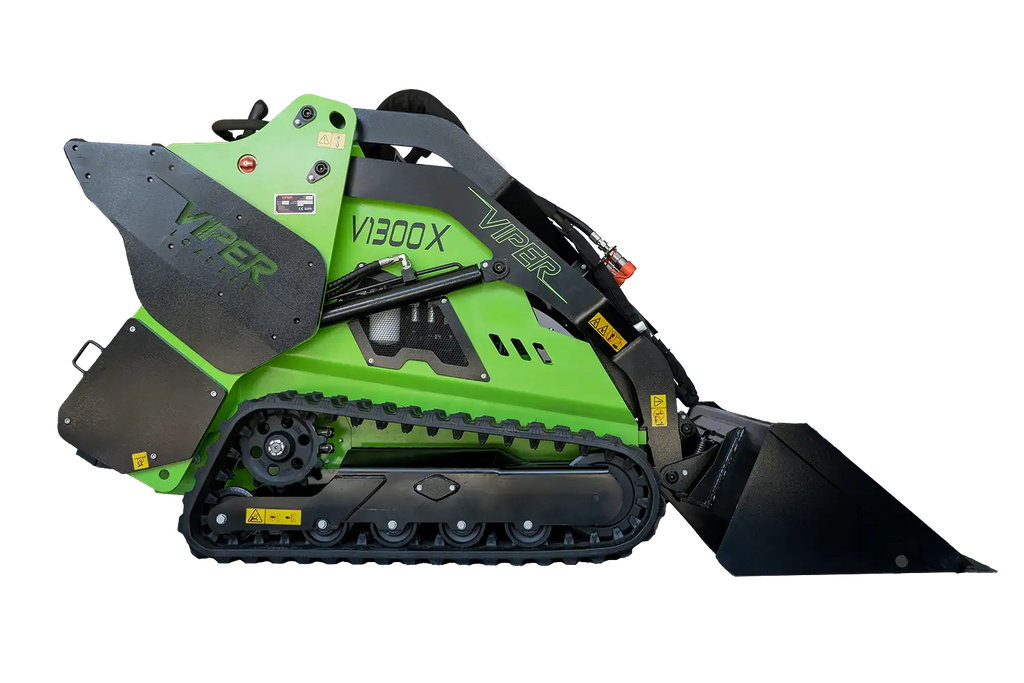

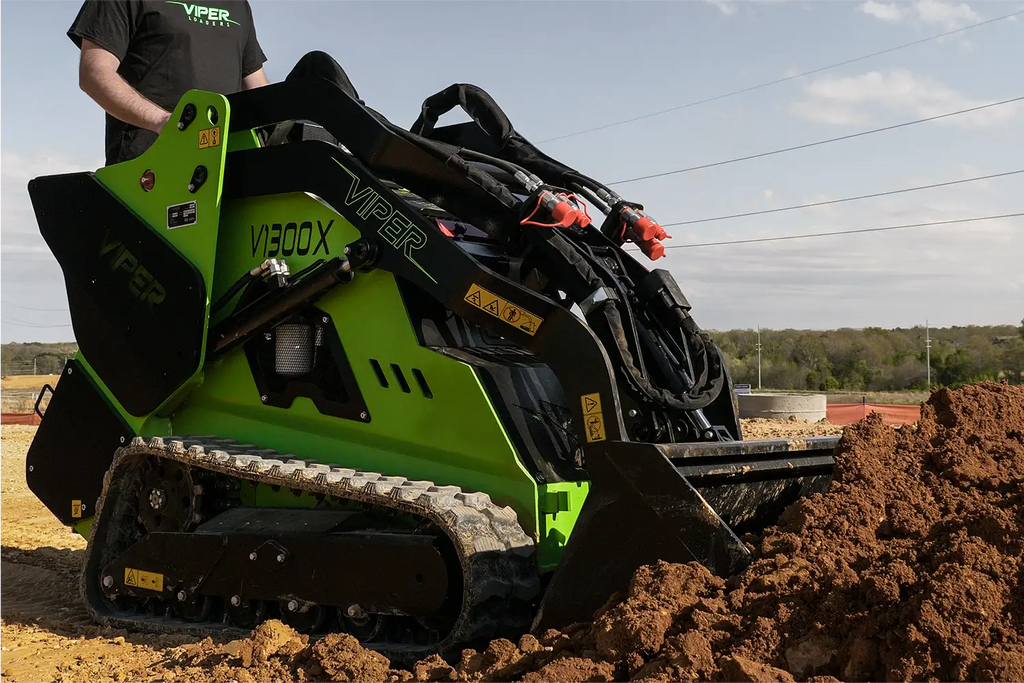

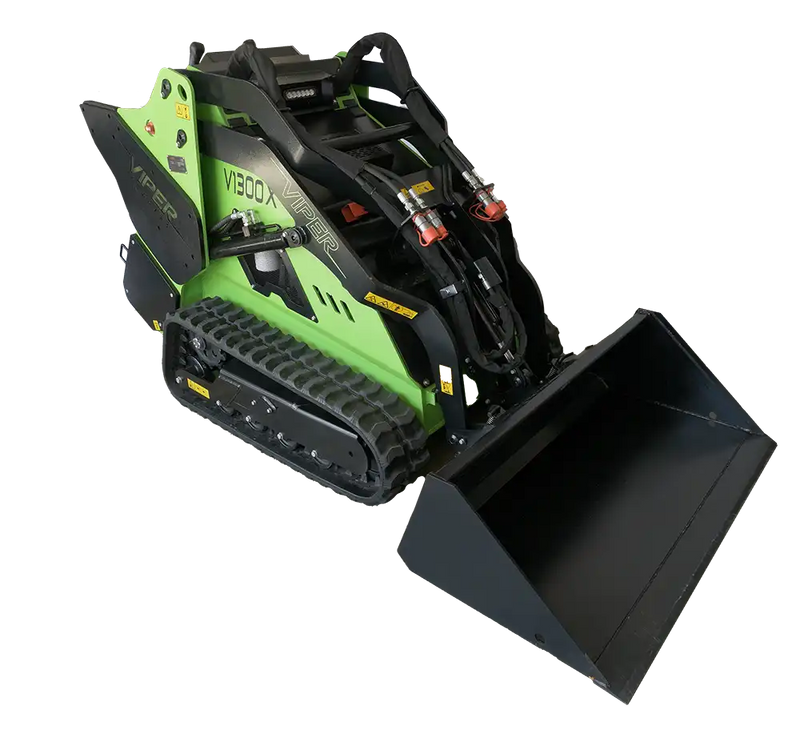

The all-new Viper V1300X gives you all the options and accessories you need to complete even the toughest tasks. With outstanding build quality and parts sourced from industry-leading manufacturers, the V1300X is built to excel at anything you can throw its way. The V1300X has a narrow footprint, powerful engine and impressive operating capacity, allowing you to tackle a large variety of jobs with ease.
PERFORMANCE
Rated Operating Capacity (ROC) 1300 lbs
Max. Travel Speed 3.5 mph (with high torque drive motors)
Machine Weight with Bucket 3323 lbs. (pilot valve)
ENGINE/ELECTRICAL
Make/Model Yanmar 3TNV80F diesel engine (EPA Tier 4 Final)
Fuel/Cooling Diesel/Liquid
Horsepower (SAE Gross J1955) 17.8 kW / 23.9 HP or 18.4 kW / 24.7 HP
Torque 52.4 ft-lb @1900 RPM (SAE Net)
Number of Cylinders 3
Displacement 1.266 L (77.2 in³)
Bore/Stroke 80 mm (3.15 in) / 84 mm (3.3 in)
Fuel Consumption 1.55 gph estimated
Air Filter Dry replaceable cartridge with safety element
Starting Aid Glow plugs
Charging System Alternator, 12V 40A
Starting System Electric starting
Battery
12 Volt; 60 Ah; 475 cold cranking amps @ 0°F (-18°C);
75-minute reserve capacity
HYDRAULIC SYSTEM
Pump Type
Drive pump Type: Two closed circuit axial piston pumps.
Auxiliary Pump Type: Gear pump
Main Control Valve 2-Spool, open center series parallel configuration
Auxiliary Control Valve 2-Spool, open center series parallel configuration
Auxiliary Flow 11.5 GPM
Hydraulic Filter Replaceable 10-micron filtration
Hose Quick Couplers
2 Sets of Quick Couplers:
Set 1 -2 quick couplers to drive a momentary attachment with cylinder(s).
Set 2 – 3 quick couplers to drive constant hydraulic flow attachments, with or
without case drain or hydraulic return.
System Relief
Auxiliary pump relief: 2900 psi (200 bar)
Ground drive pump relief: 3045 psi (210 bar)
DRIVE SYSTEM
Main Drive
Right Hydraulic Motor drives right side track
Left Hydraulic Motor drives left side track
Transmission Direct drive of hydraulic motor to main undercarriage drive sprocket
Tracks 8” inch wide
CAPACITIES
Cooling System 1.3 gal
Engine Oil with Filter 0.8 gal
Fuel Tank 9 gal
Hydraulic Reservoir 11 gal
Hydraulic System 11.9 gal
CONTROLS
Engine Starting Aid
Key-switch ignition.
Preheating function in cold weather.
Glow Plugs – Activated by key switch.
Hydraulic Flow Share
Driving tracks hydraulic flow is independent from arm & auxiliary hydraulic
flow.
Travelling Direction and Speed Controlled by a single pilot-operated joystick
Arms Lift & Tilt & Float
(rear or front direction and flow)
Controlled by a single pilot-operated joystick
Emergency shut-off Yes
INSTRUMENT DISPLAY
V1300X conditions are monitored by a digital display, which has a combination of gauges and warning lights
that monitor the following functions:
Gauges Gauges Warning Lights
Hour meter Engine Oil Pressure
Engine Coolant Temperature Hydraulic Oil Temperature
Fuel level Air filter alarm
Engine speed System Voltage
