Description:

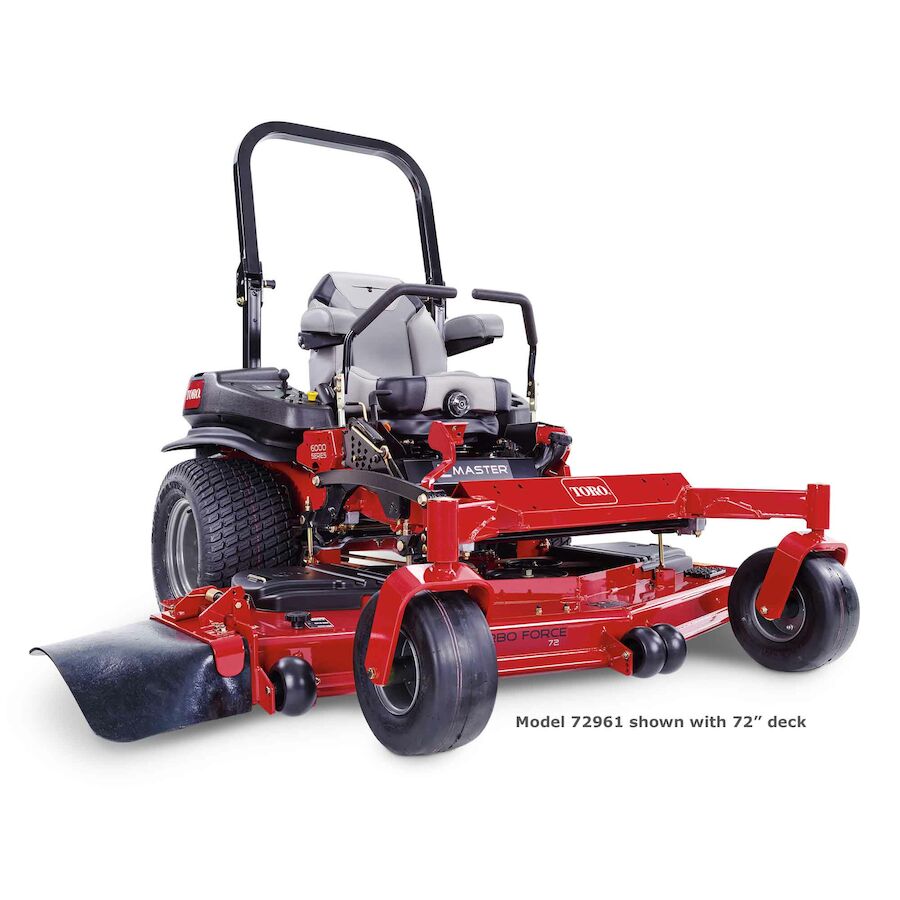

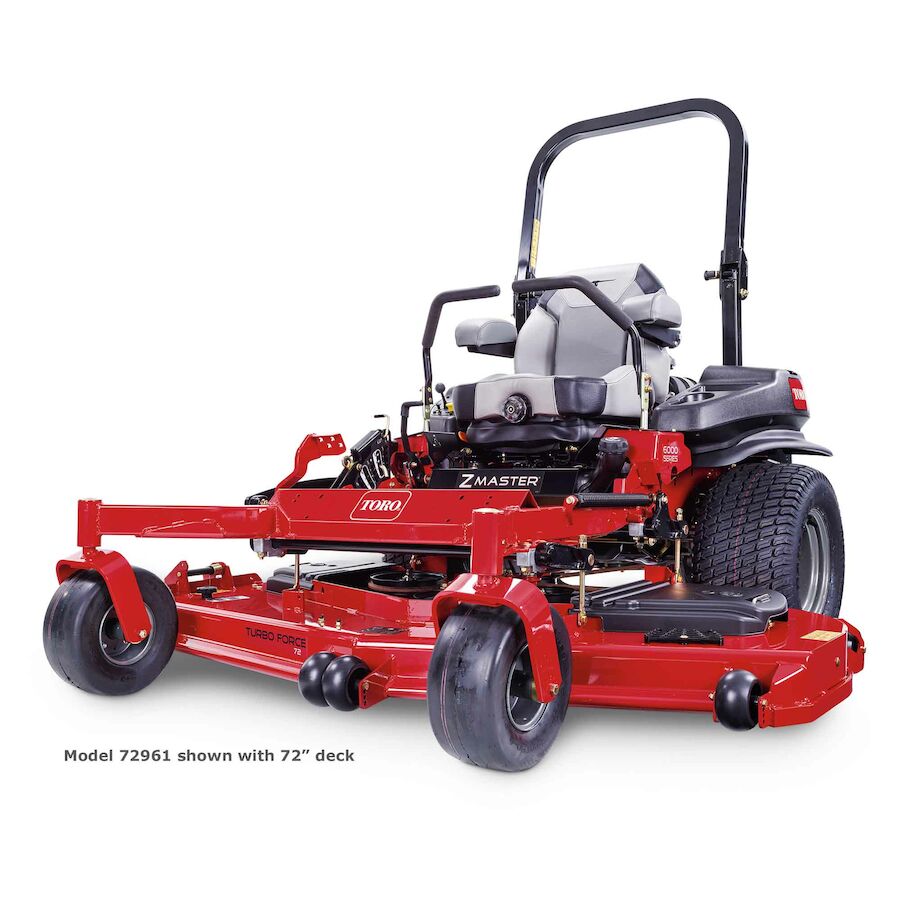

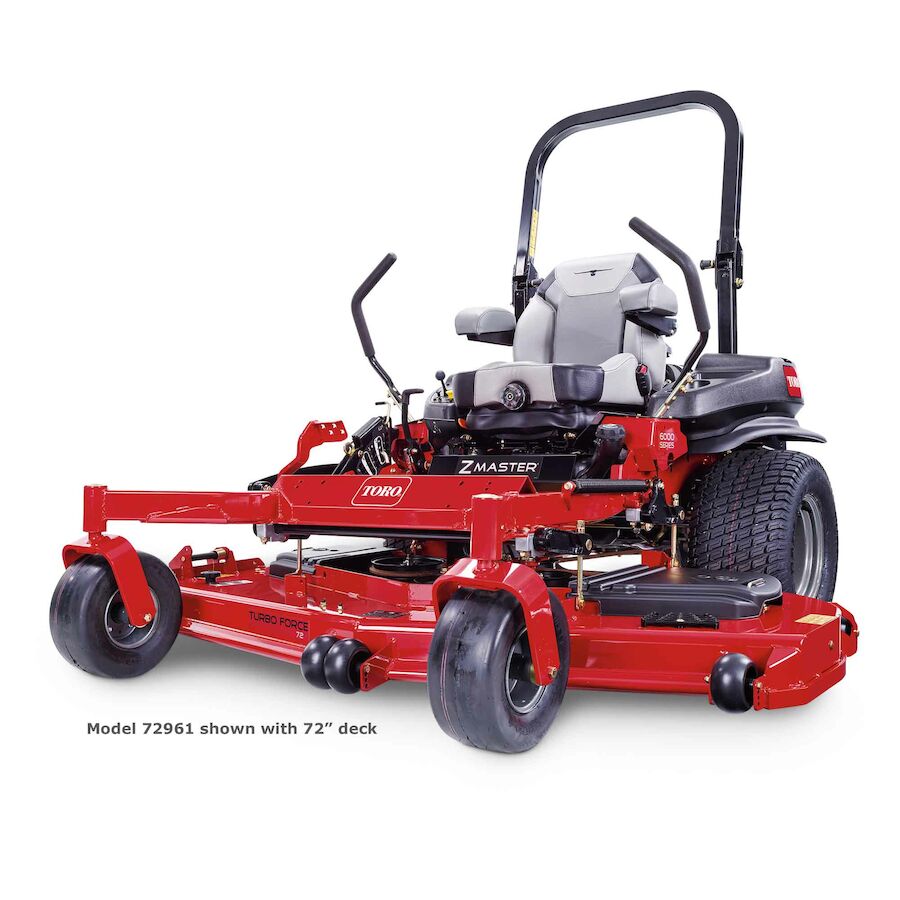

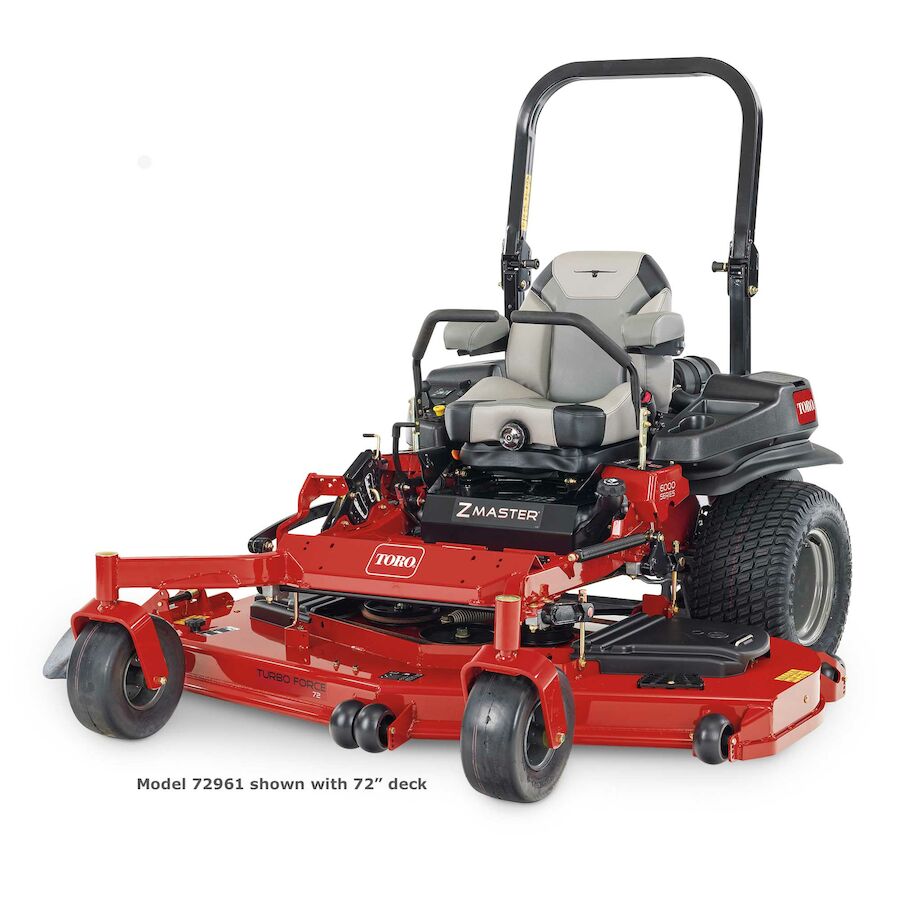

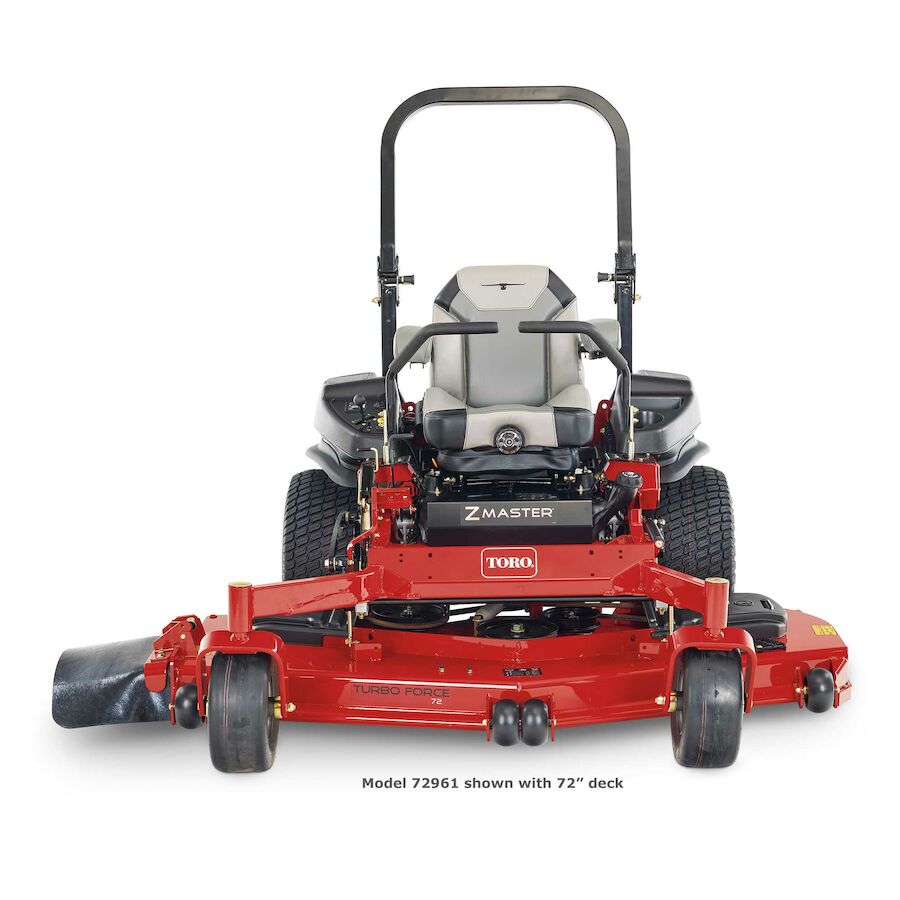

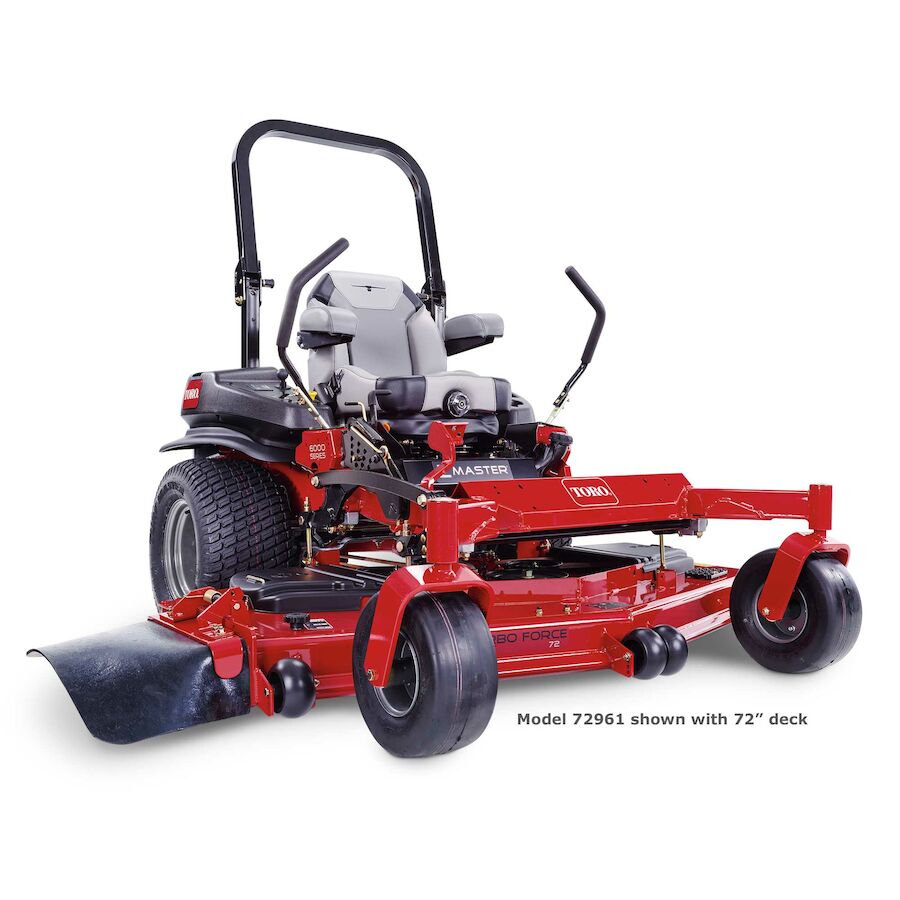

The Z Master 6000 Series is one of Toro’s most advanced zero-turning radius mowers. It’s also one of our most comfortable. This Z Master® 6000 Series mower has a 26.5 hp (19.8kW) Kohler® EFI 747cc Engine with 60 in. (152 cm) TURBO FORCE® deck.

Features:

• Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
• Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue, fully adjustable to match operator comfort
• Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Type: Zero Turn Mower
• Engine Brand: Kohler
• Engine Model: EFI 747 cc
• Engine Horsepower: 26.5 hp* (19.8 kW)
• Engine Displacement: 747 cc
• Fuel Type: Gasoline
• Fuel Capacity: 12 gal. / 45.4 L / 48 Qt.
• Start Type: Electric
• CARB Compliant: Yes

Performance

• Forward Ground/Transport Speed: Up to 11.5 mph / 18.5 kph
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Number of Blades: 3
• Blade Material: 0.204 in. (0.5 cm) Heat-Treated Steel

Cutting Deck

• Deck Size: 60 in / 152 cm
• Deck Design: 80-Grade 7-Gauge Steel TURBO FORCE® w/Bull-Nose Bumper
• Deck Material: 7-Gauge Steel
• Height of Cut Range: 1.0 - 5.5 in. / 2.5 - 14.0 cm
• Discharge Chute: Rubber
• Adjustable Discharge Baffle: Standard, Tools-Free

Drive System

• Drive System: Unitized Pumps 16cc and Wheel Motors 17.1 cir
• Hydraulic Fluid: Premium Synthetic

Chassis and Tires

• Carrier Frame: 3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
• Drive Tires: 24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm)
• Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm), Flat-Free Semi-Pneumatic
• Front Bumper: Reinforced Bull-Nose

Comfort & Controls

• Comfort Platform: Deluxe Suspension with 3-D Isolation Mounts
• Seat: Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
• Armrests: Standard
• Steering Controls: 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened
• Steering Dampeners: Standard Dampers
• Hour Meter: Smart Hour Meter

Spindle System

• Spindle Bearings: Maintenance-Free
• Spindle Housing: 9 in / 22.9 cm Diameter Cast Aluminum

Additional Features

• Clutch: Electromagnetic

Dimensions & Weight

• Box Dimensions: 91 in. x 70.25 in. x 52.5 in. / 231.1 cm x 178.4 cm x 133.4 cm
• Weight: 1,245 lbs / 564.72 kg

Width	Weight	Height	Length
	1245 Pounds		0 Inch
