Description:

We’ve put 100 years of pushing-the-limits, ruler-of-the-blade, and never-back-down badassery into our newly created Titan MAX. Our engineers have commercial contractor brains, but are evil-geniuses when it comes to delivering for the guy with some serious, undomesticated acreage. The Titan MAX is built on a commercial-worthy blue print, from a pro gene pool, with truly Iron Forged features and durability. Enjoy the comforts of being a Titan of industry with a work- and worker-friendly ride, seating, on/off access and more. If you’re looking for commercial level features, unmatched durability, user-friendly amenities, and powerful reliability all in one mega monster—Meet Titan MAX. Born and raised in the heartland of America, this MAXed-out machine grabs work by the horns, rides roughshod over it and shuts it down.

Features:

• Built on Great Bones - A tubular steel frame and grade 50 hardened 10-gauge steel – there’s no stopping you now.

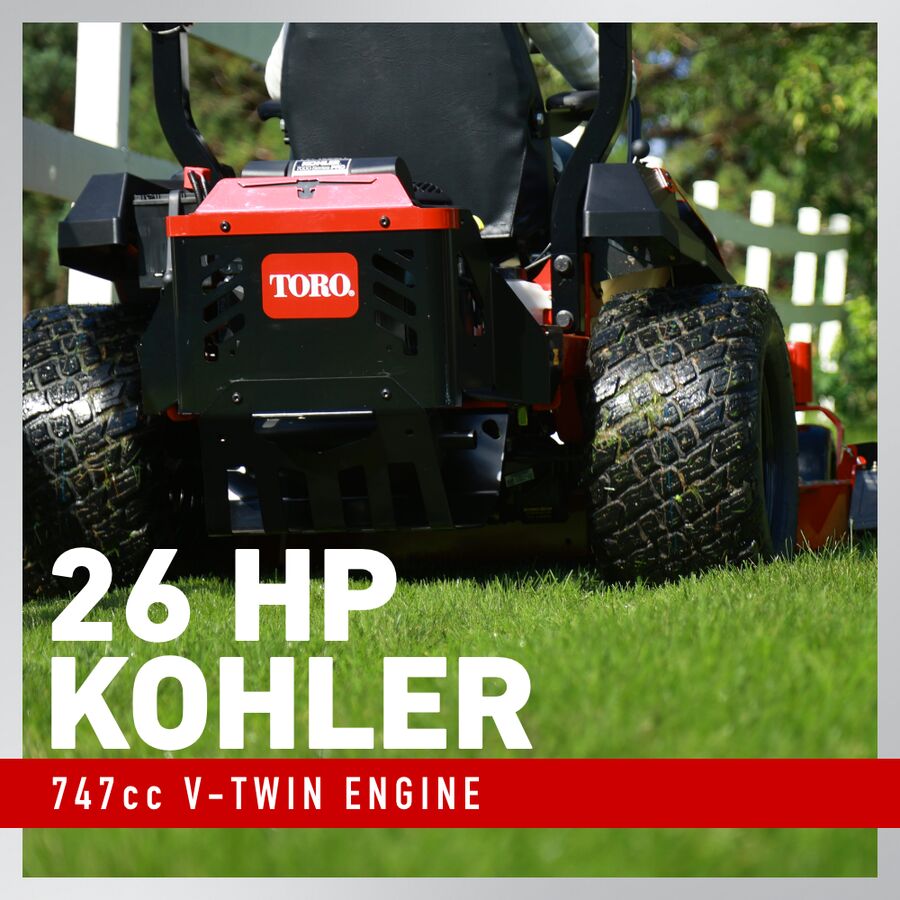

• Big Power - Designed to give your mower powerful performance to cut through the nastiest lawns with the 26 HP* Kohler Engine.

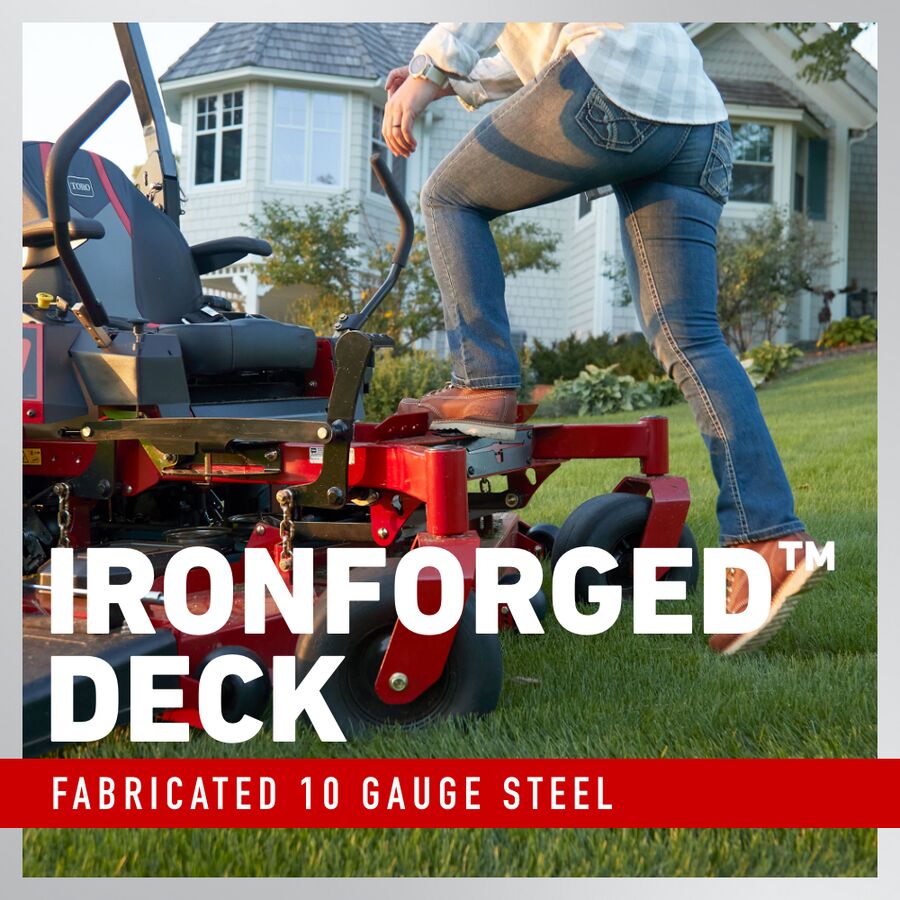

• Built Like a Bull - IronForged® high strength grade 50, 10-gauge steel deck with bull nose reinforced leading edge.
• Easily clear unexpected obstacles and save your deck with the deck lift pedal.
• Stay cool and hydrated with a built-in cup holder.
• Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more
• The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.

Specifications:

General:

• Product Type: TITAN Max
• Intended Use: Residential
• Recommended Yard Size: Up to 7 acres
• Weight: 876 lbs / 397.3 kg
• Fuel Type: Gasoline
• Fuel Capacity: 7 gallons / 26.5 liters / 28 quarts

Engine and Transmission:

• Engine Brand: Kohler
• Engine Model: 747 cc with Pro Air Cleaner
• Engine Horsepower: 26.0 hp
• Engine Displacement: 747 cc
• Transmission: Hydrostatic

Dimensions:

• Box Dimensions: 91 in. x 70 in. x 52.5 in. / 231.1 cm x 177.8 cm x 133.4 cm

Performance:

• Forward Ground/Transport Speed: Up to 9.0 mph / 14.4 kph
• Forward Mowing Speed: Up to 9.0 mph / 14.4 kph
• Blade Tip Speed: 18,908 ft/min / 5,763 m/min
• Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm
• Foot Operated Height of Cut: Standard
• Anti Scalp Wheels: Standard (4)

Deck and Blades:

• Deck Size: 60 in / 152 cm
• Deck Design: Fabricated 10 gauge high-strength steel with bull nose
• Deck Material: 10 gauge high-strength steel
• Number of Blades: 3
• Discharge Chute: Rubber
• Spindle Housing: 8 in / 20.3 cm cast aluminum

Tires:

• Caster Tires (Front): 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic
• Drive Tires (Rear): 23 in. x 12 in. - 12 in. (58.4 cm x 30.5 cm - 30.5 cm)

Comfort and Convenience:

• Seat: 23” Handcrafted High Back with Armrests and Toro Logo
• Armrests: Standard
• Cup Holder: Standard
• Hour Meter: Standard
• Start Type: Electric
• Controls: Dual Wrap Around Levers
• Steering Controls: 1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened with Pro-Control Dampers
• Hitch Bracket: Standard

Terrain Handling:

• Drive Type: Rear-Wheel Drive
• Front Bumper: Reinforced Bull-Nose
• Terrain Type: Flat with Obstacles

Compliance and Maintenance:

• CARB Compliant: Not CARB Compliant
• Recommended Oil Type: 10W-30 with filter change

Safety and Additional Features:

• Roll-Over Protection (ROPS): Standard
• Included in the Box: 1 Battery, Engine Oil
